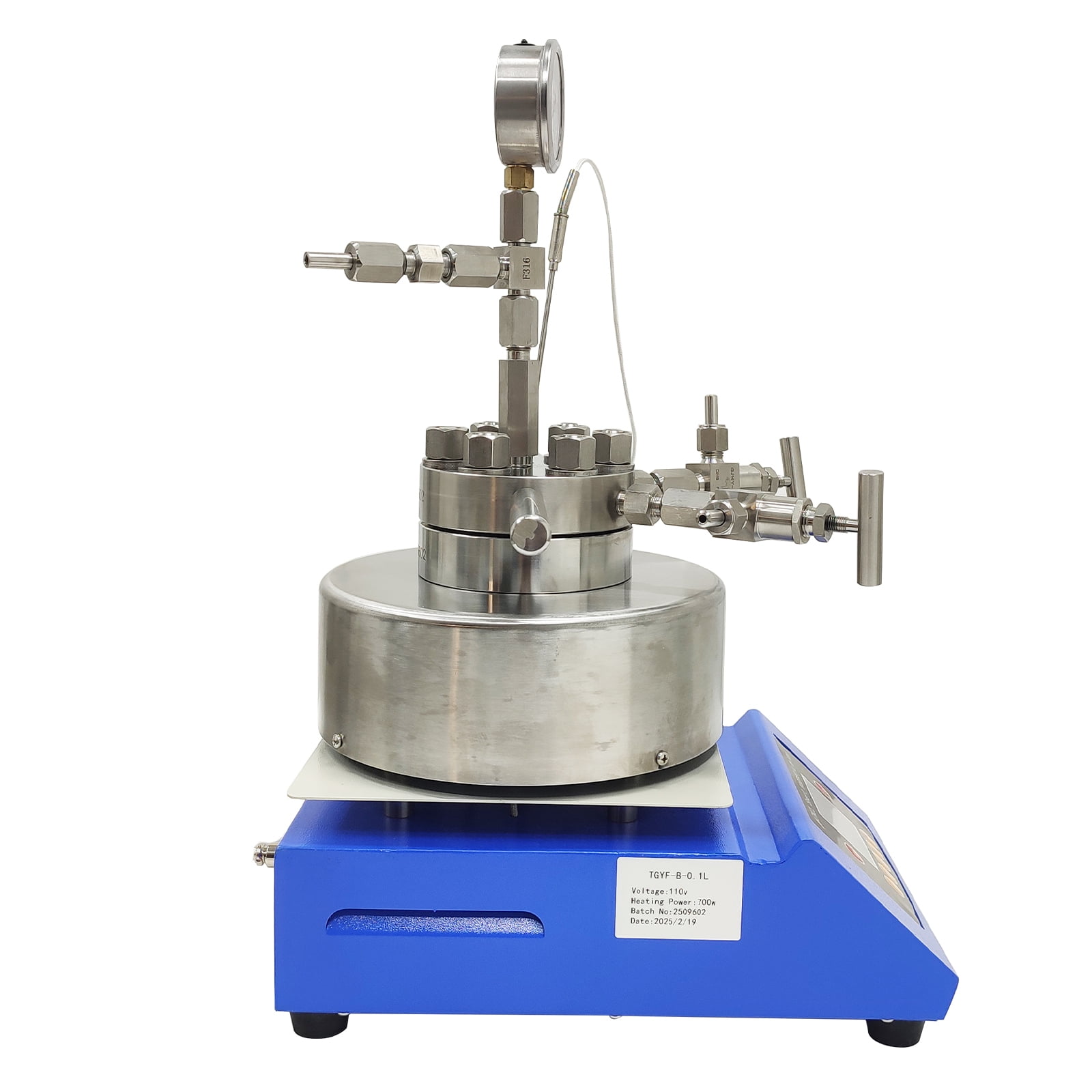

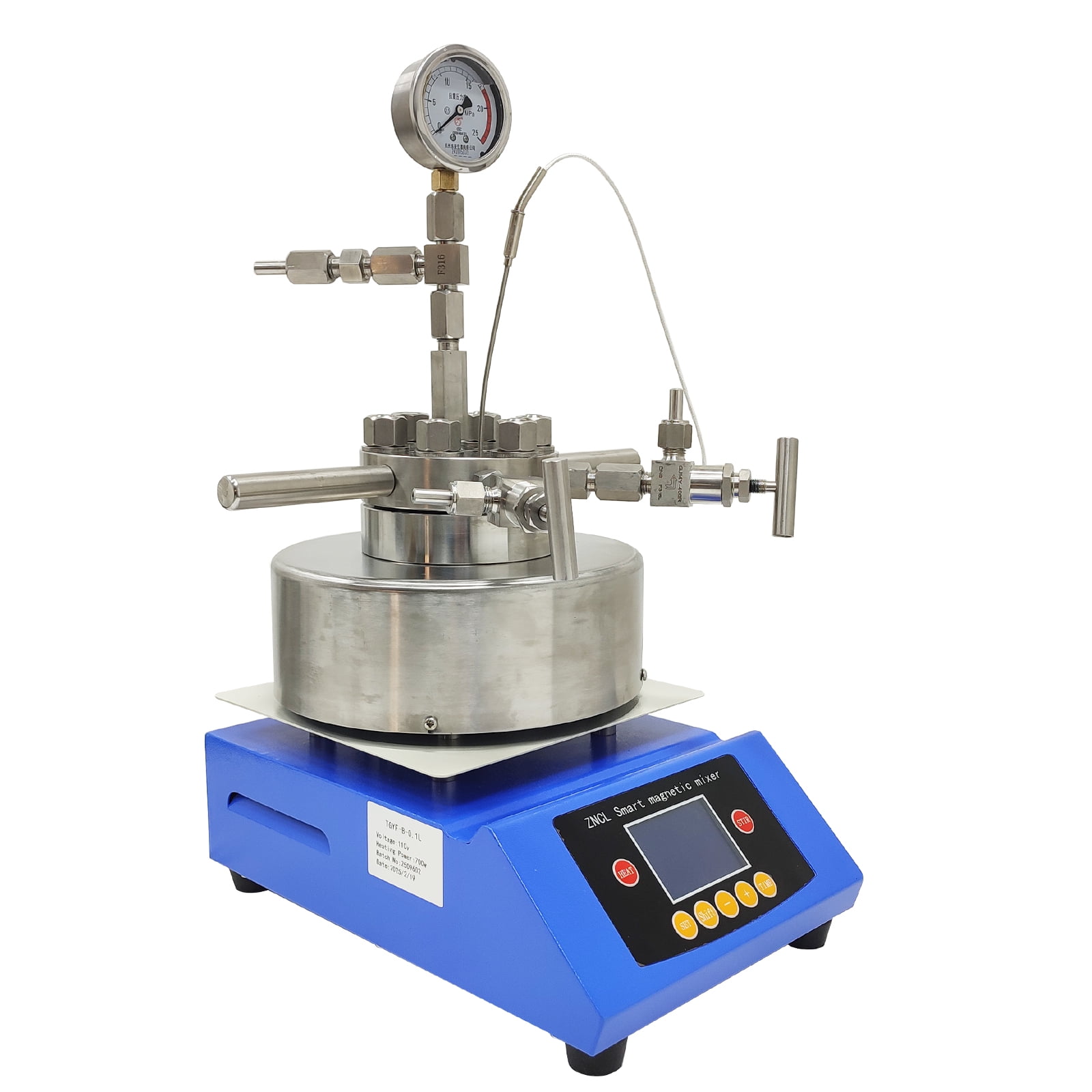

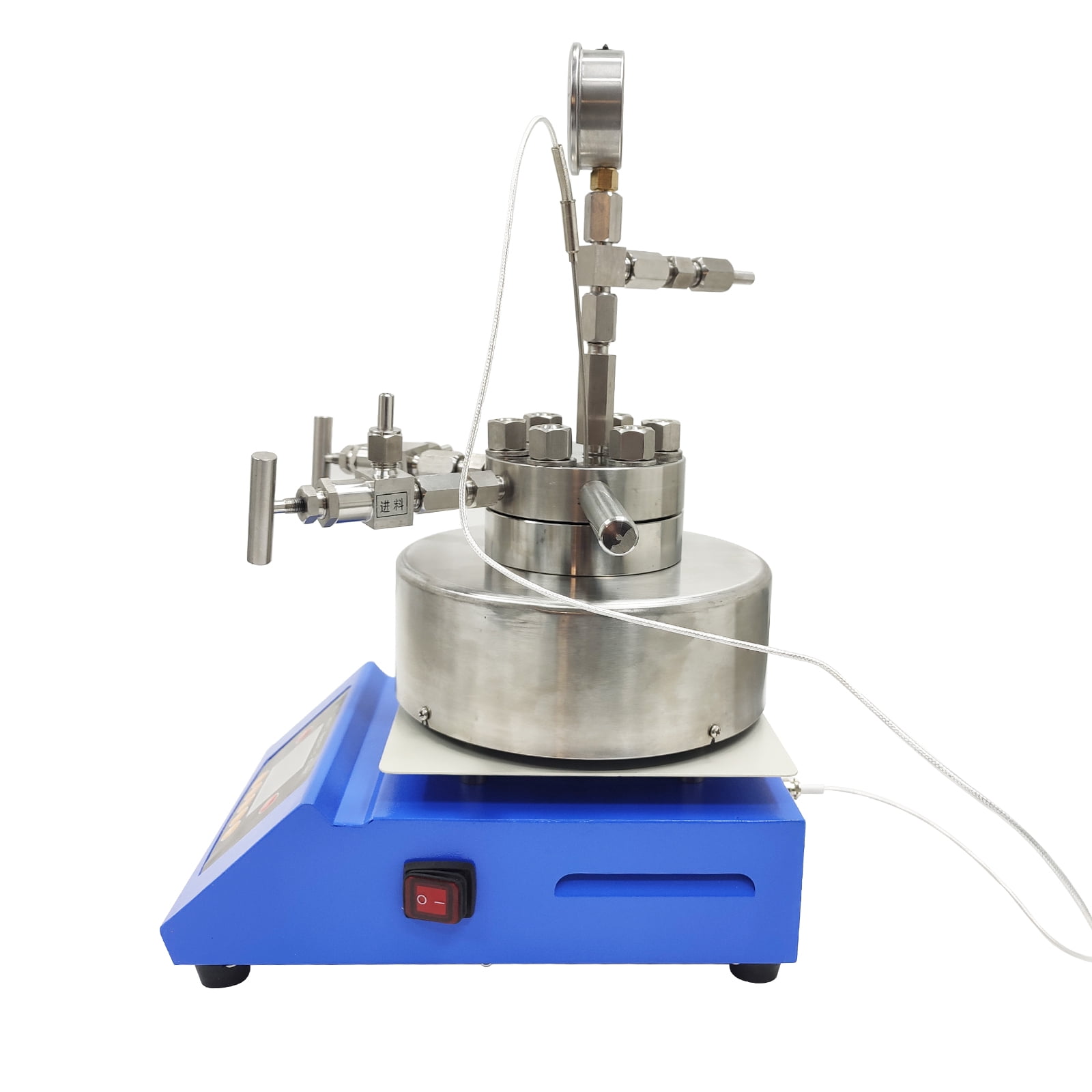

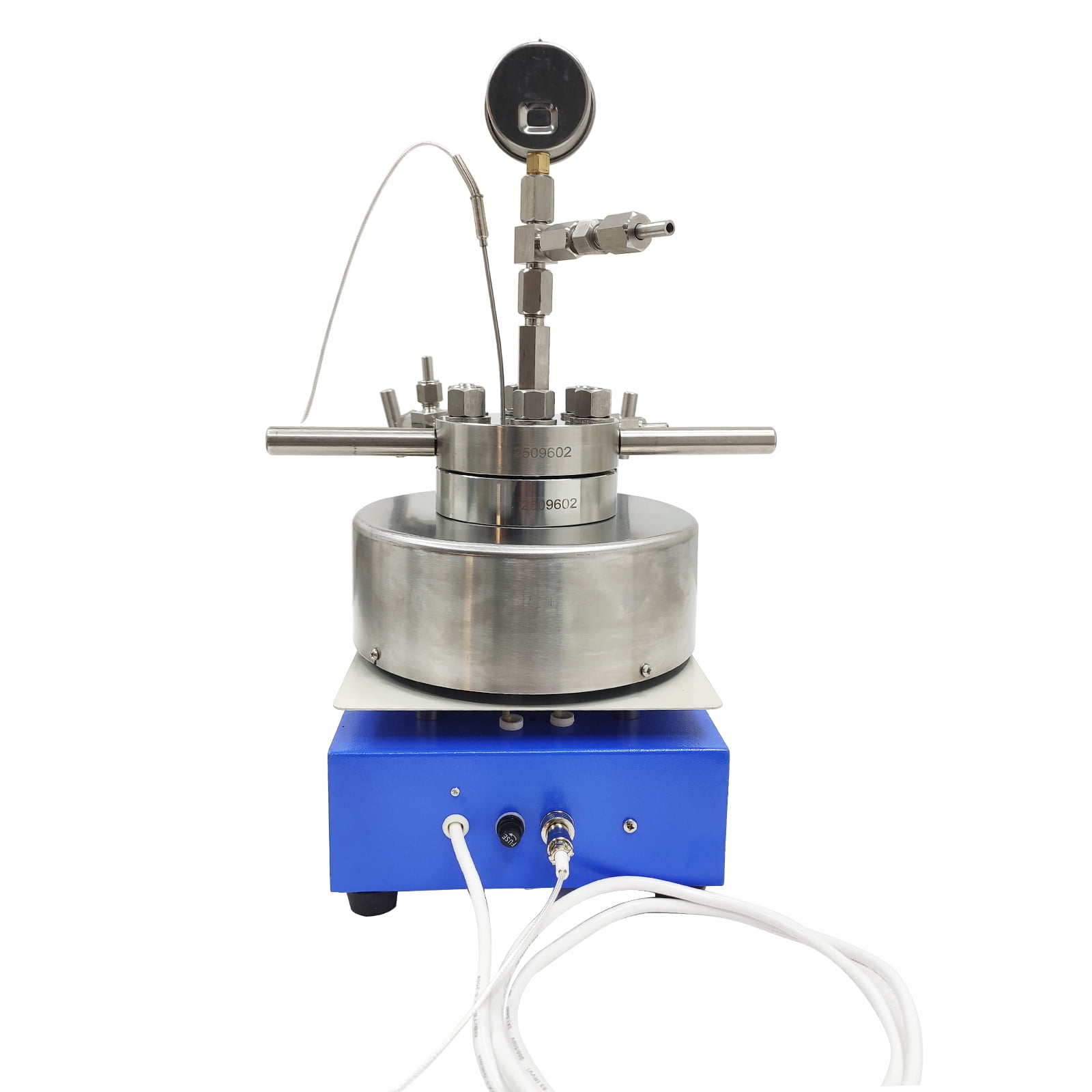

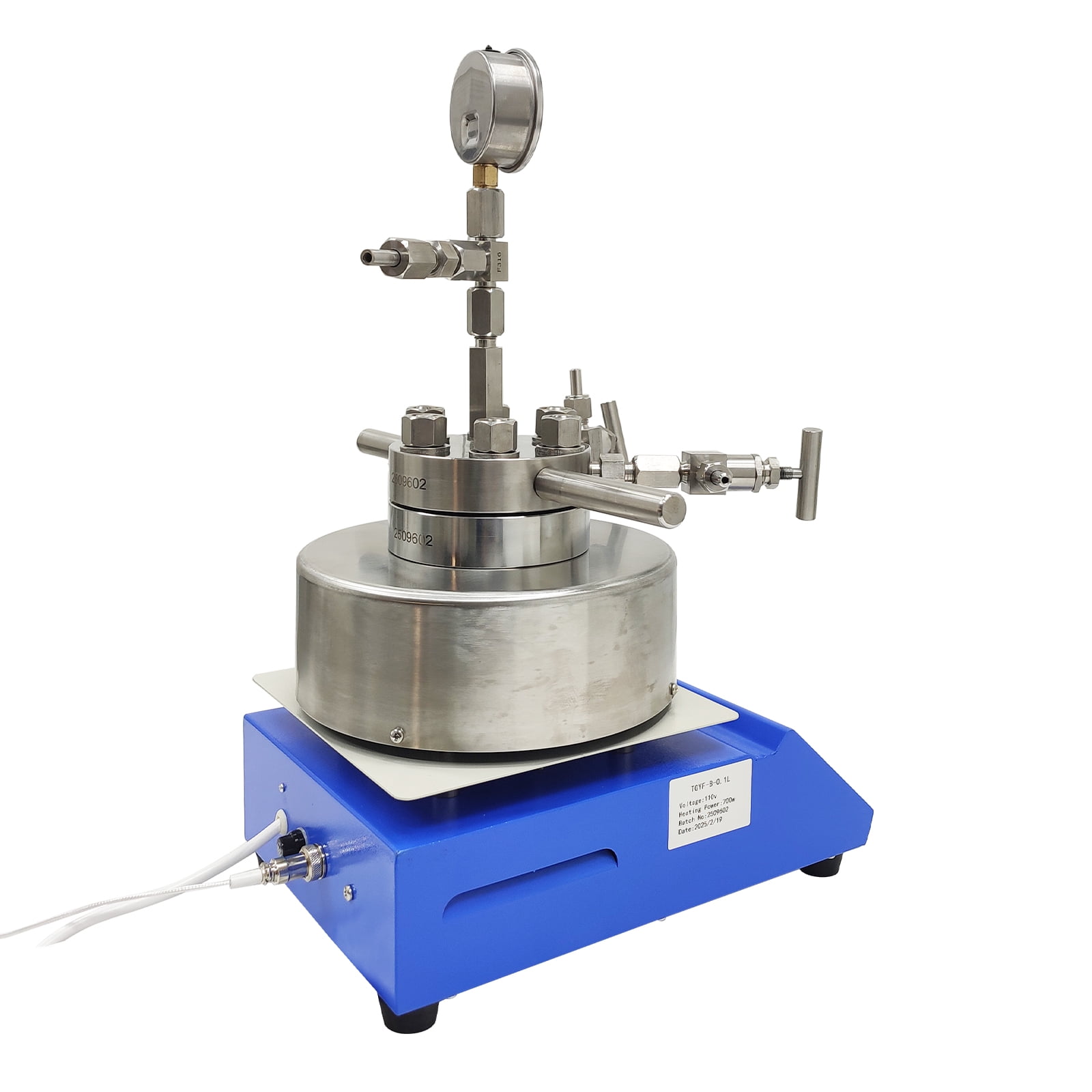

0.1L Desktop High-pressure Magnetic Stirring Reactor Type 316 stainless steel Lab Chemical Reaction Vesse

Product Overview: <br>The desktop type stainless steel reactor is suitable for various reactions such as gas-liquid reactions, liquid-liquid reactions and liquid-solid-gas reactions. The reactor adopts a static sealing structure, which can solve the problem of leakage in the mixing process and keep the whole medium and mixing parts working in a completely sealed state. It is more suitable for stirring reactions of flammable, explosive, highly toxic and valuable media and other highly permeable chemical media. The desktop type stainless steel reactor integrates mixing, heating and reaction, has a wider range of application and is suitable for fields of universities, environmental protection, biochemistry, scientific research, etc. <br> <br>Parameters: <br>1. Voltage: 110V <br>2. Capacity: 0.1L <br>3. Material of reactor body: 316L stainless steel <br>4. Design pressure: 22MPa <br>5. Design temperature: 220 ℃ <br>6. Sealing mode: magnetic rotation, static sealing, type A <br>7. Mixing speed: 0-1800RPM <br>8. Mixing mode: magnetic stirring <br>9. Heating mode: electric heating <br>10. Heating power: 0.7KW <br>11. Temperature control accuracy: ± 1 ℃ <br> <br>Usage and precautions <br>1. When the screws are tightened, the operator must gradually apply force to tighten the screws for multiple times in a diagonal and symmetrical mode, the force must be evenly applied, and the reactor cover is not allowed to tilt to one side. <br>2. When tightening the main nut, do not exceed the specified tightening torque range of 40-120nm to prevent the sealing surfaces from being crushed or worn out under overload. <br>3. The operator should take special care of the sealing surfaces, and the upper and lower sealing surfaces should be wiped clean with a piece of gentle paper or cloth before each installation. <br>4. Do not form scars on the sealing surfaces of the reactor body and the reactor cover. If the sealing surfaces are damaged, they needs to be reprocessed and repaired to achieve good sealing performance. <br>5. When the reactor cover is disassembled, it should be slowly lifted and it is strictly prohibited to disassemble the reactor cover under pressure. After the reaction is completed, the reactor body should cool down naturally to the room temperature and then can be opened. The sealing surfaces between the reactor body and the reactor cover are prevented from colliding with each other. <br>6. It is recommended that the external heating temperature should not exceed 200 degrees Celsius in the working process, and the heating rate should be less than or equal to 5 ℃ min. <br>7. The filling degree of the interior of the reactor should not exceed 80%. <br> <br>Item included(220585): <br>316 stainless steel laboratory high-pressure magnetic stirring reactor

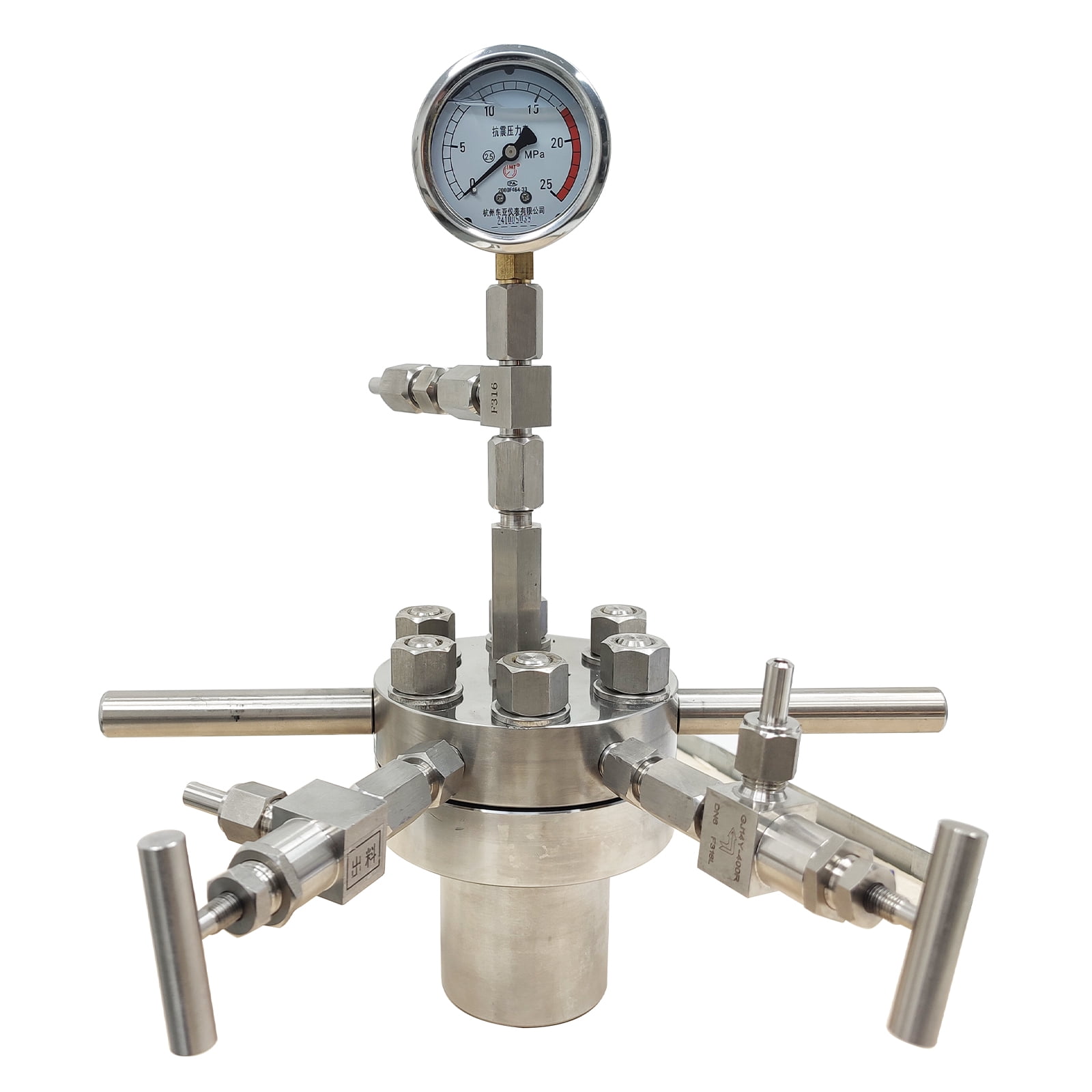

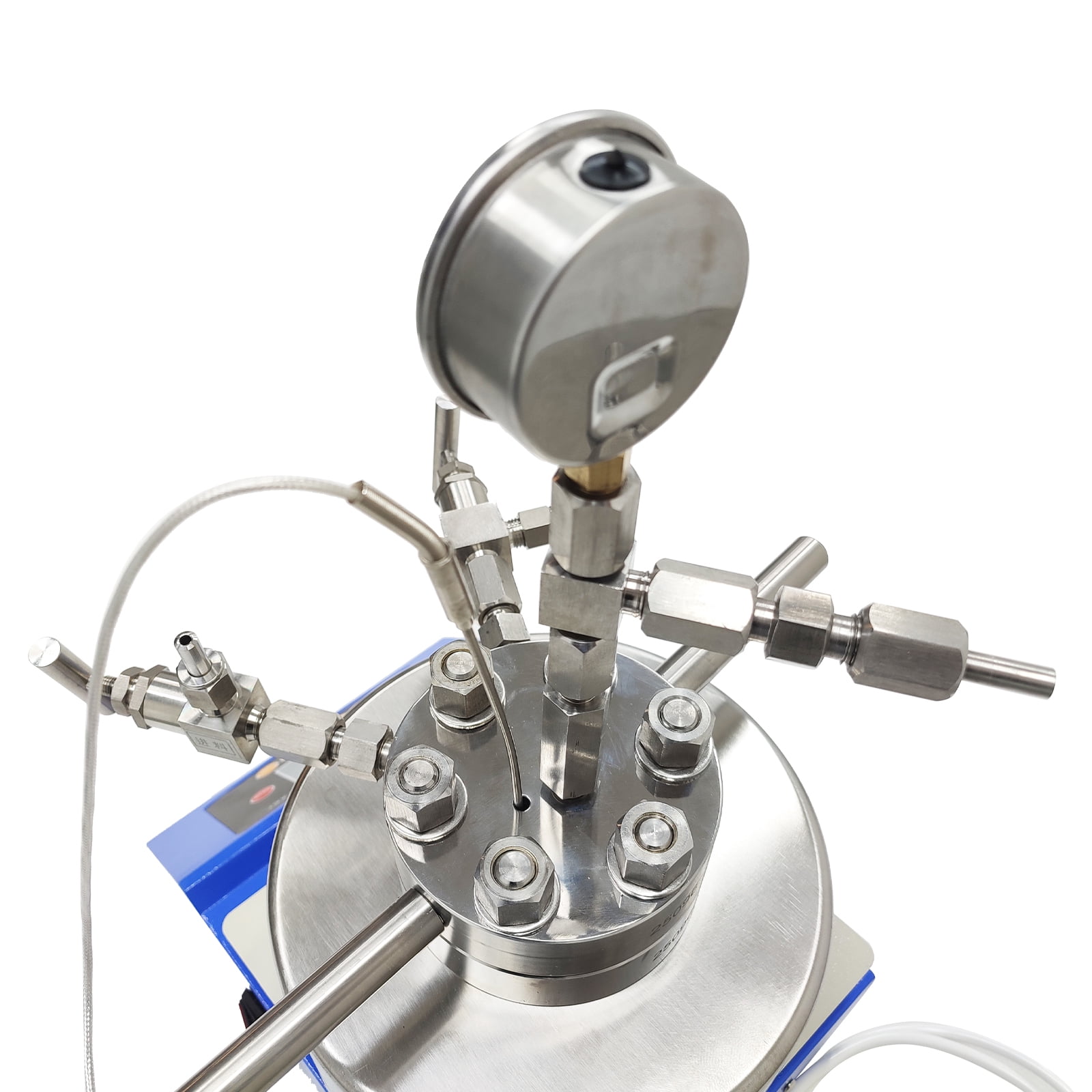

• 【Stainless Steel Material】Stainless steel explosion-proof valve, safe and reliable. Durable. The stainless steel reactor is equipped with an air inlet valve, a sampling valve, an exhaust valve and a temperature probe.
• 【Visible Pressure Value】The pressure gauge can monitor the reaction pressure inside the reactor in real time.
• 【Adjustable】Liquid crystal control panel, adjustable temperature and speed.

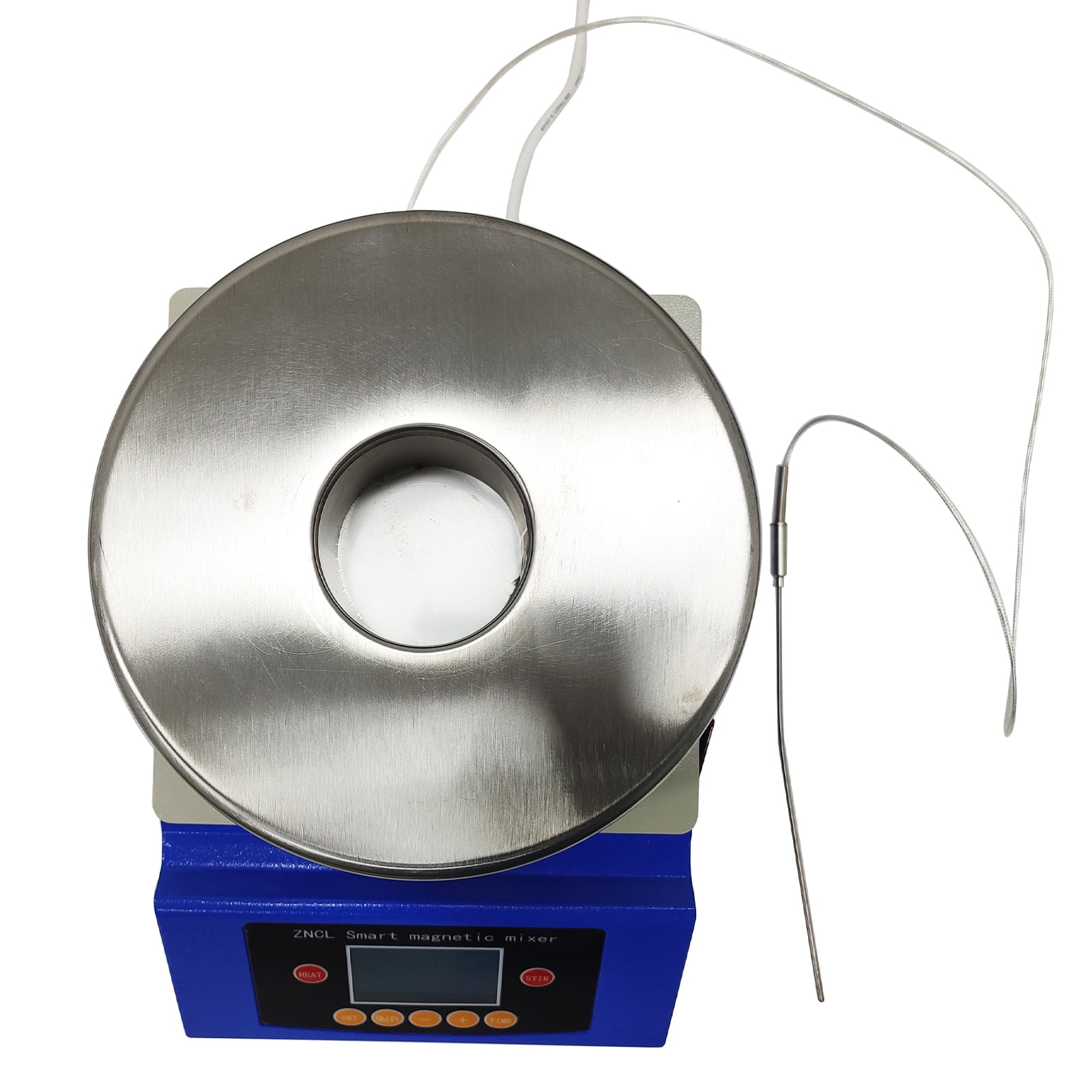

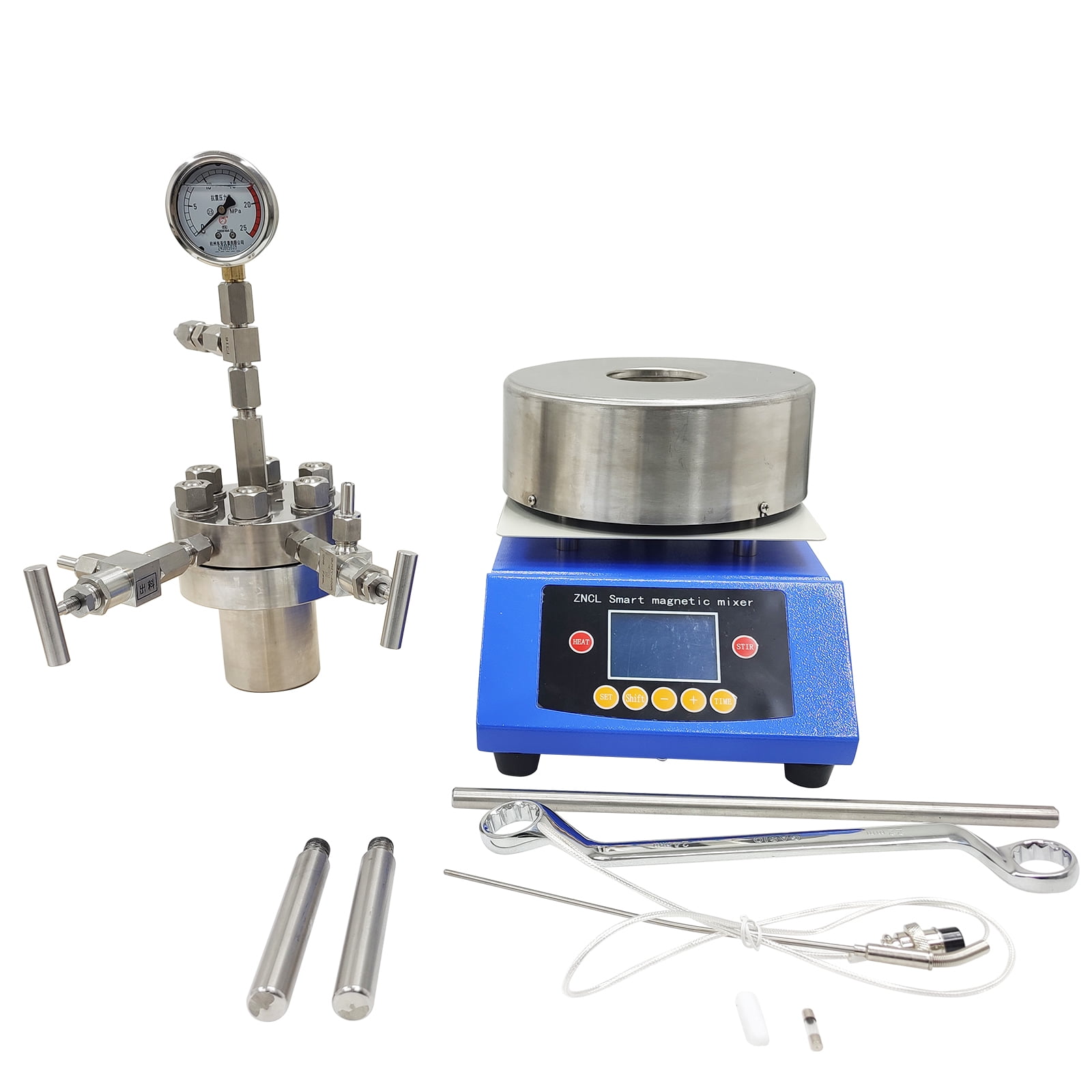

• 【Detachable】The reactor body and the heater can be quickly separated to achieve the cooling purpose.
• 【Widely Application】Suitable for stirring reactions of flammable, explosive, highly toxic and valuable media and other highly permeable chemical media. The desktop type stainless steel reactor integrates mixing, heating and reaction, has a wider range of application and is suitable for fields of universities, environmental protection, biochemistry, scientific research, etc.
